New and Refurbished Electrostatic Chuck Services
Creative Technology provides new manufacturing and refurbishment services for various Electrostatic Chucks (ESC / E-Chuck).
We specialize in electrostatic chucks used in semiconductor equipment, covering 6”, 8”, and 12” sizes. Our products include materials such as Polyimide (PI), anodized surfaces, and ceramic thermal spray coatings, all of which we manufacture and refurbish.
Below is a list of the product models and services we offer. We also provide customized solutions to meet specific requirements. If you have any questions or needs, please feel free to contact us.
150mm (6”) New and Refurbishment Services

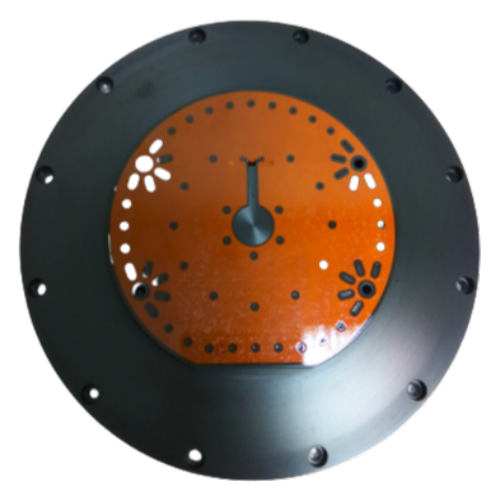

0010-10982
150mm AMAT MXP+ ESC

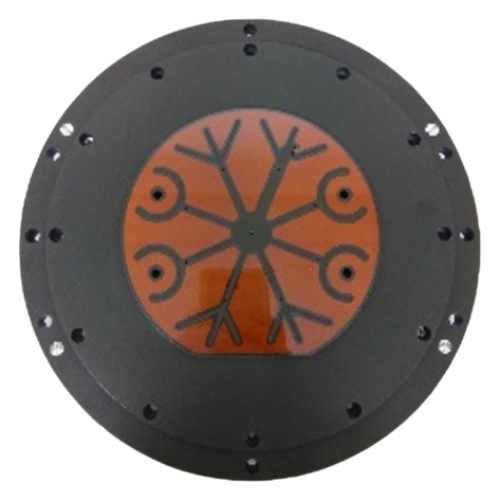

0010-10529 / 0040-09963
150mm MxP Poly

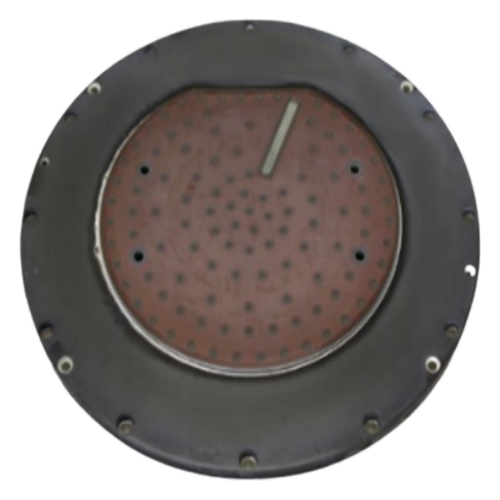

0010-10204
150mm Centura ESC

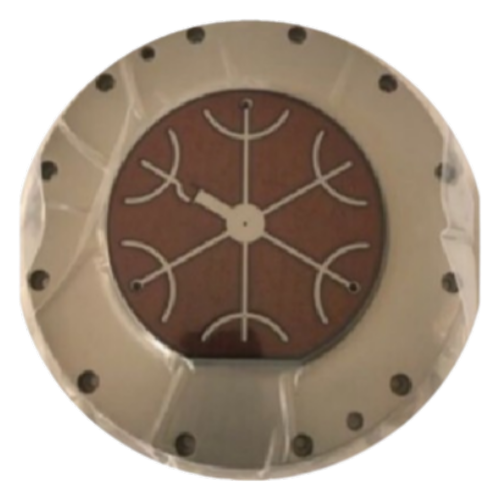

0090-35135
150mm DPS ESC

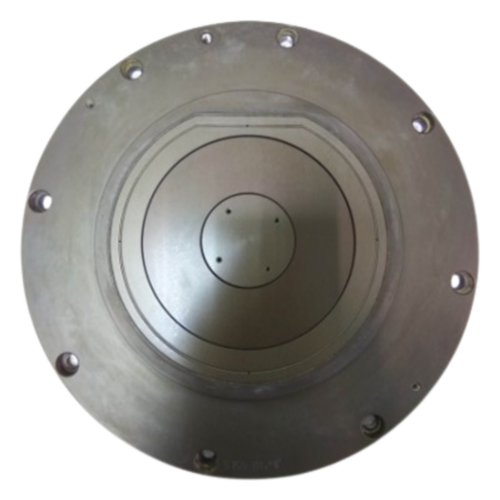

718-094756-061
150mm Lam 9600 ESC

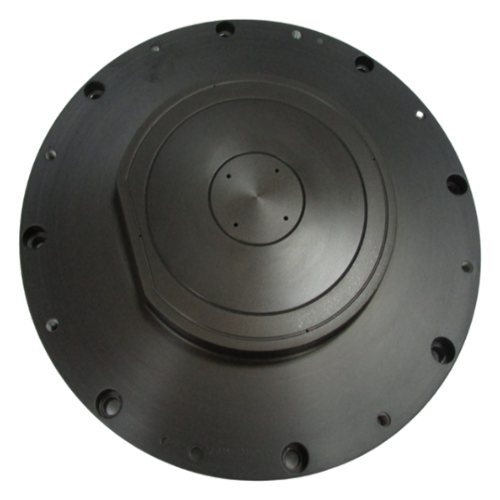

718-092326-066
150mm Lam 4720 ESC
200mm (8”) New and Refurbishment Services
0010-10982
200mm AMAT MXP+ ESC / STI Nitride ESC
0010-10982

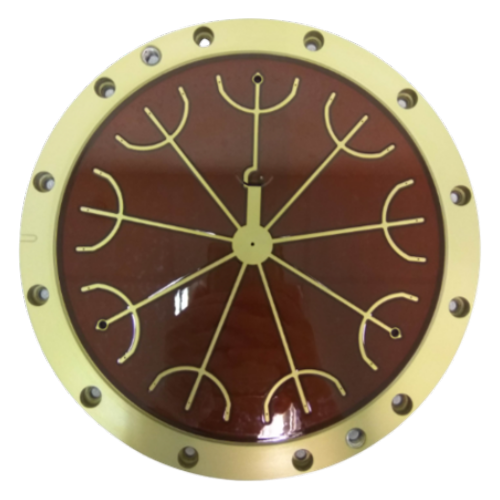

0040-77771/0090-35133 200mm AMAT DPS ESC
0010-10982
200mm AMAT E-Max ESC

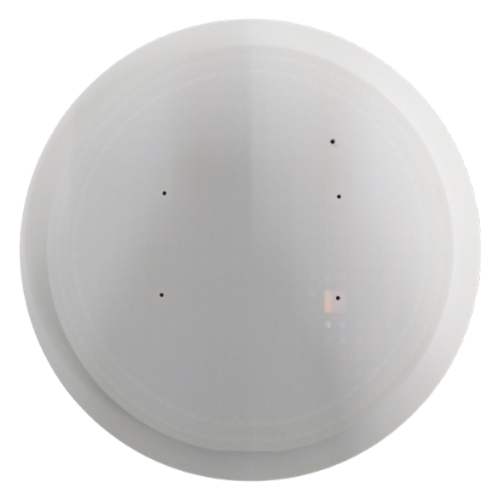

0040-18219 / 0041-78449 / 0040-18053
200mm AMAT HDP ESC

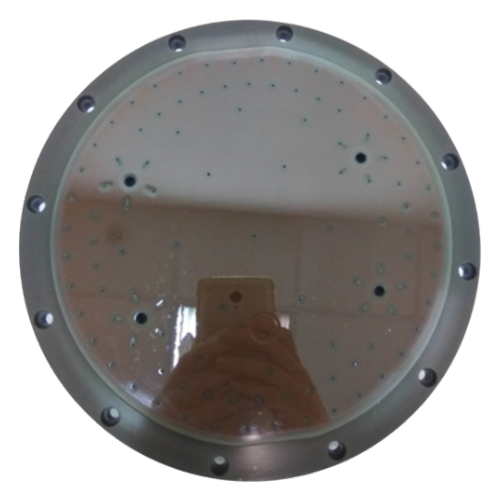

0090-09298
200mm AMAT MXP GEN 2 ESC

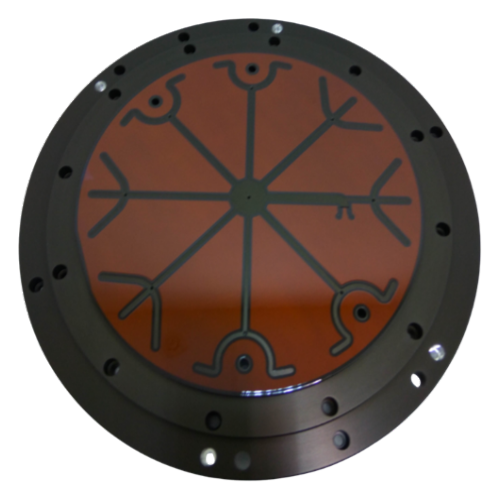

0010-10528 / 0041-37391
200mm AMAT STI MXP Poly ESC - New

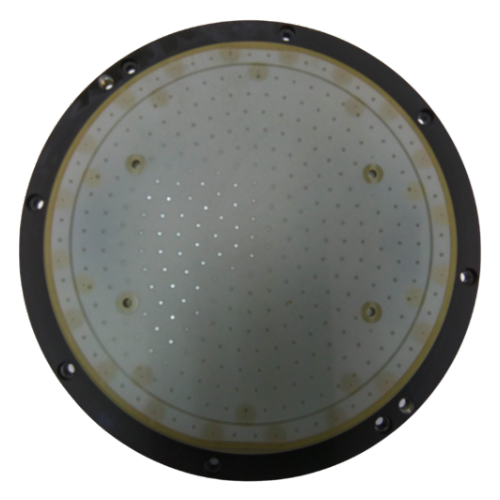

0010-05966 / 0040-39990 / 0010-39835
200mm AMAT Super E ESC

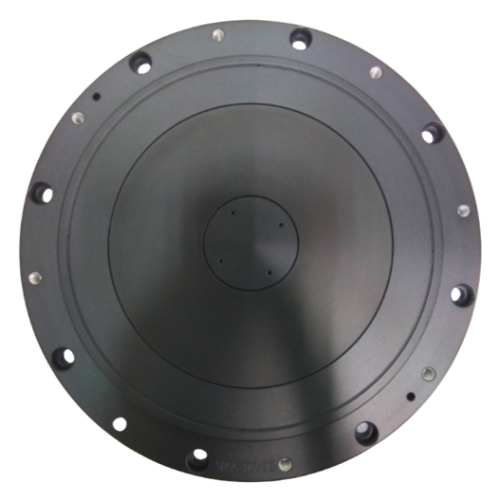

718-094523-281 / 718-094523-218
200mm LAM9400 ESC

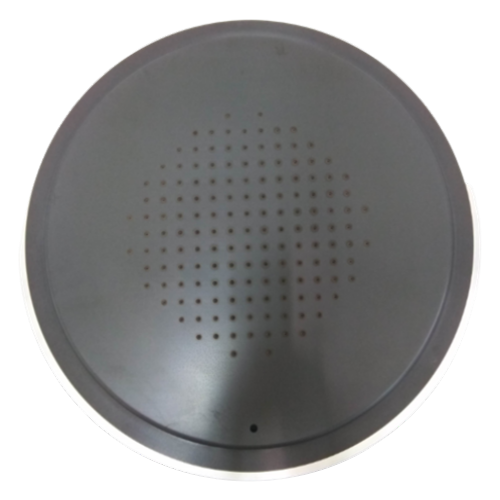

ES1D10-202204-12 / ES1D10-250233-11
Electrode Upper P-1 (DRM2)

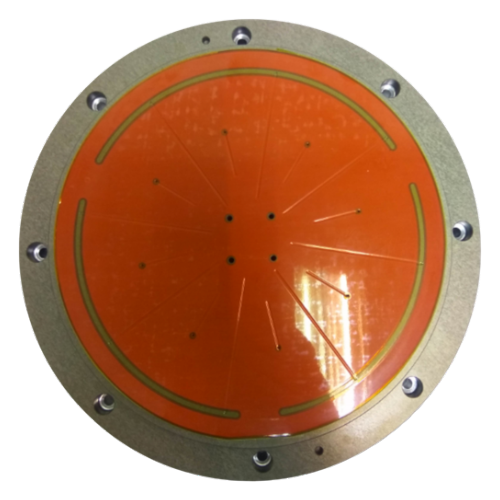

1885-023137-17
200mm TEL 85DP ESC - New

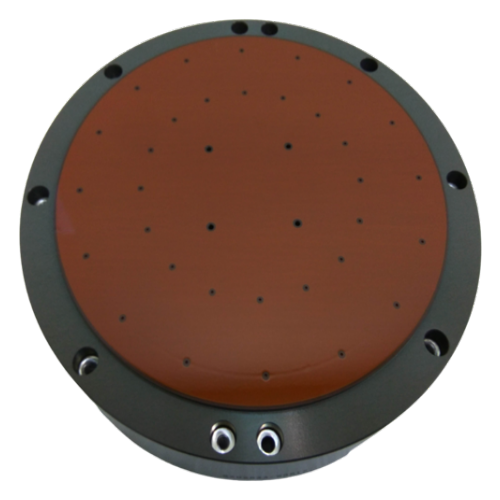

ES1D10-100956-12
200mm TEL 85DD (PI) ESC - New

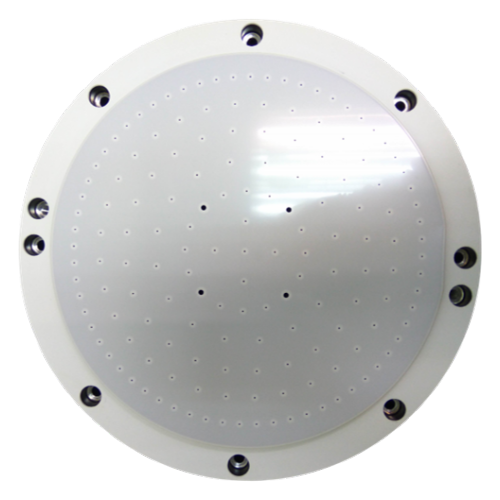

ES1D85-006978-15 / ES1D85-006978-13
200mm TEL 85DD (Ce) ESC - New

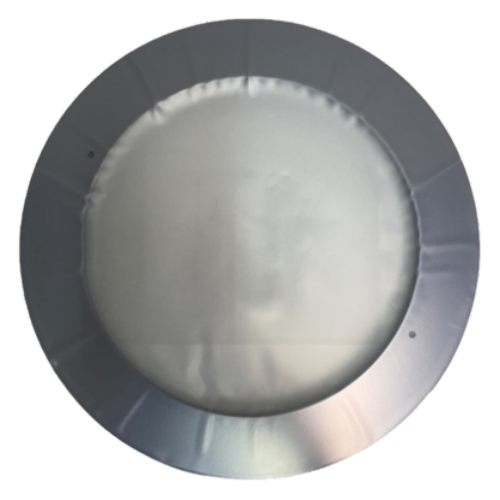

ES1810-225123-11
TEL SCCM Focus Si Ring

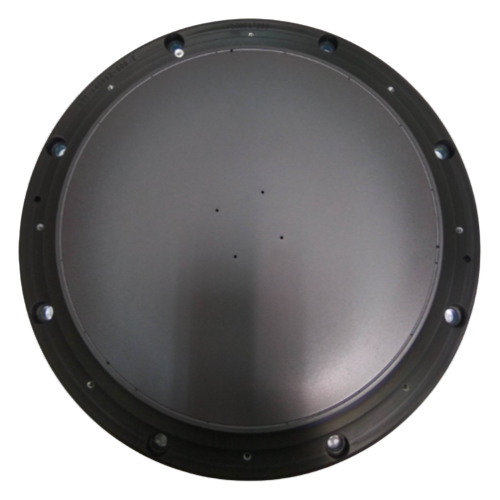

839-440462-508
200mm Lam Exelan ESC

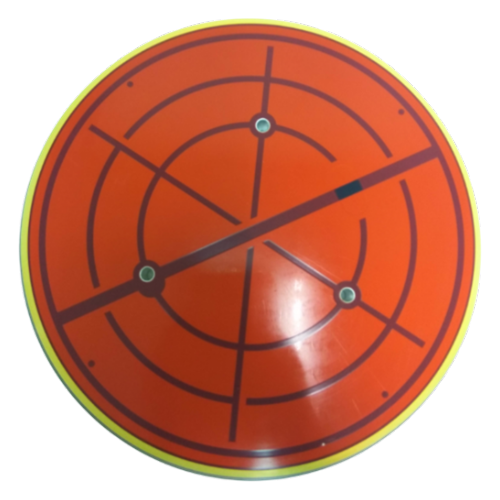

3FB0229G-4
200mm Shibaura CDE ESC

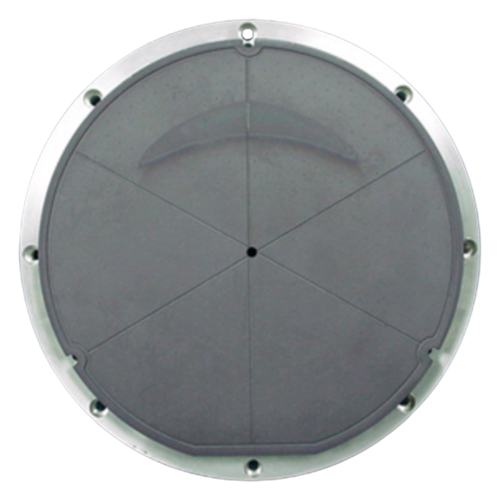

02-1302-134263-00 / 02-257120-00
200mm Novellus HDP ESC
ES1D85-006978-13
200mm TEL 85DD (Ce) ESC
300mm (12”) New and Refurbishment Services

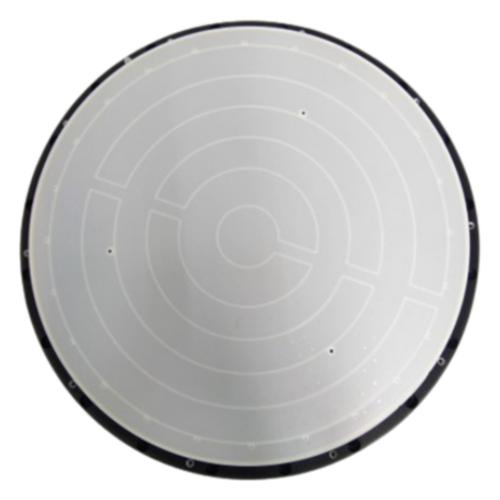

839-019090-608
300mm LAM 608

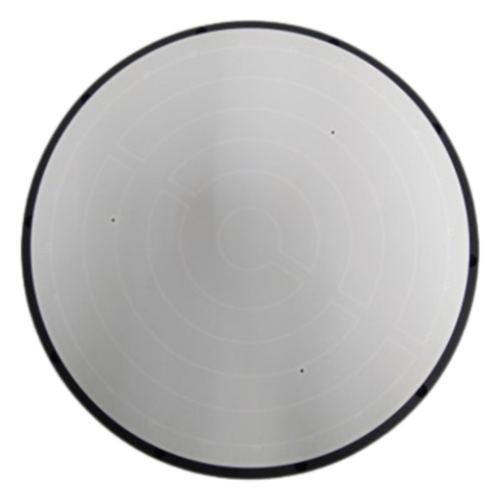

839-019090-611
300mm LAM 611

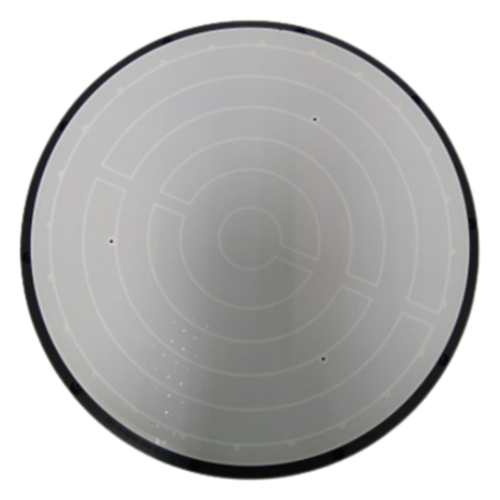

839-019090-374
300mm LAM 374
839-019090-577
300mm LAM 577

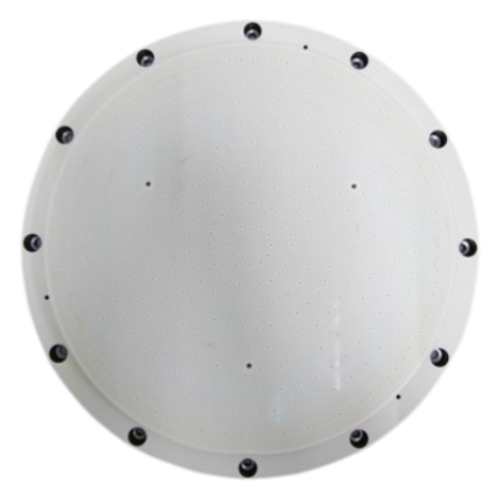

3D10-150110-11
300mm TEL Long life ESC

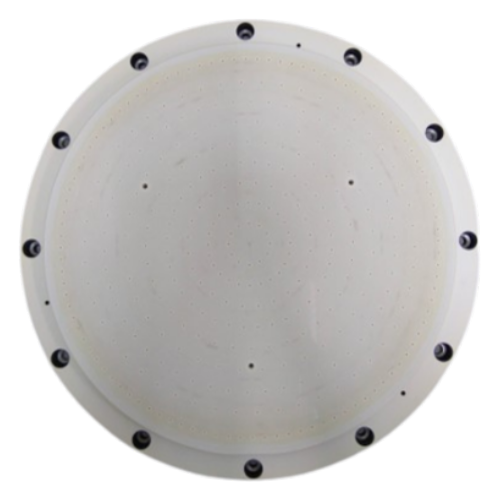

3D10-101227-11
300mm TEL SCCM BSP ESC

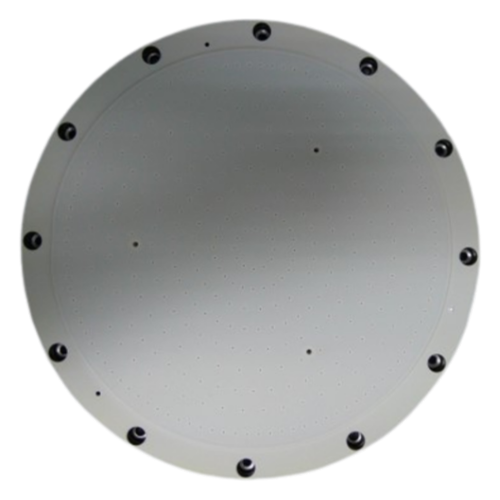

3D10-100930-13
300mm TEL SCCM SE+ ESC

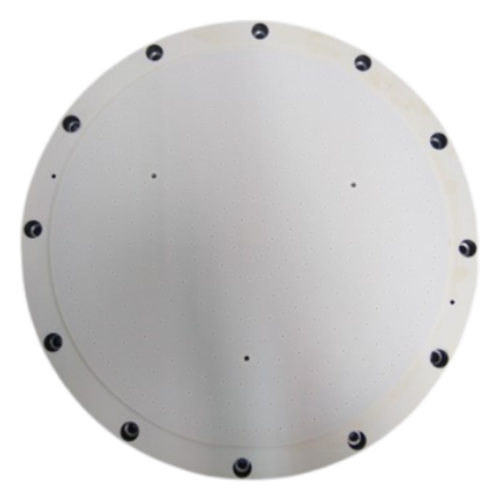

3D10-100123-16 / 3D87-002338-14
300mm TEL DRM ESC

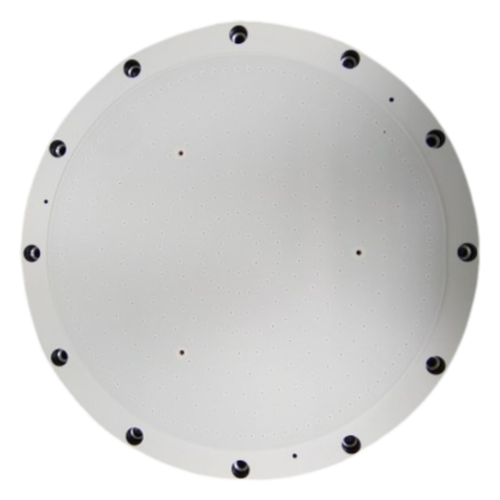

3D10-100810-12 / 3D10-100433-12
300mm TEL SCCM SE ESC

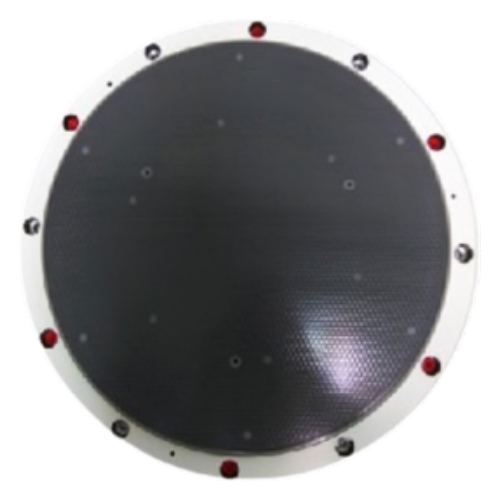

ES2L10-151441-11
300mm TEL Vigus ATCC ESC

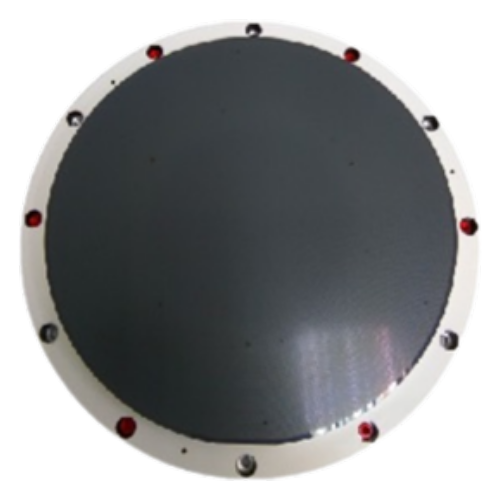

2L10-150993-11
300mm TEL Vigus NX ESC

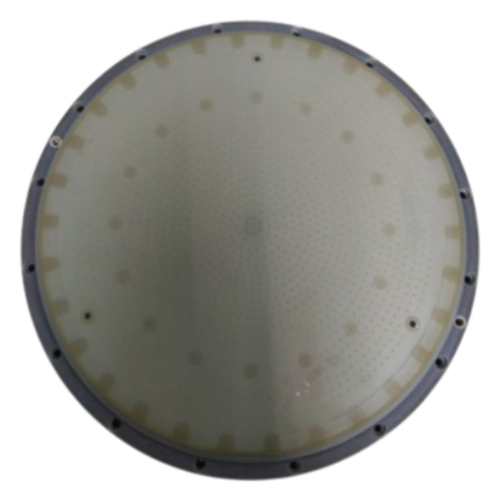

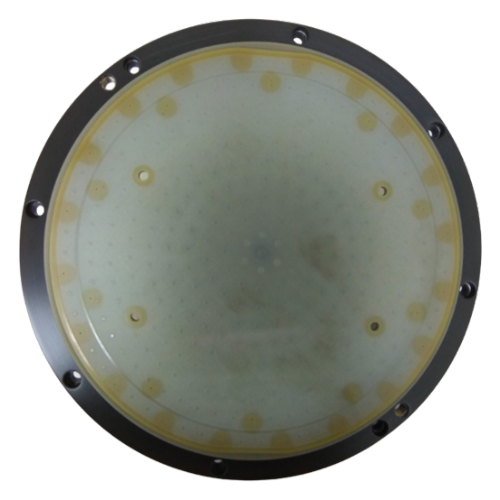

0010-11216
300mm AMAT E-Max ESC

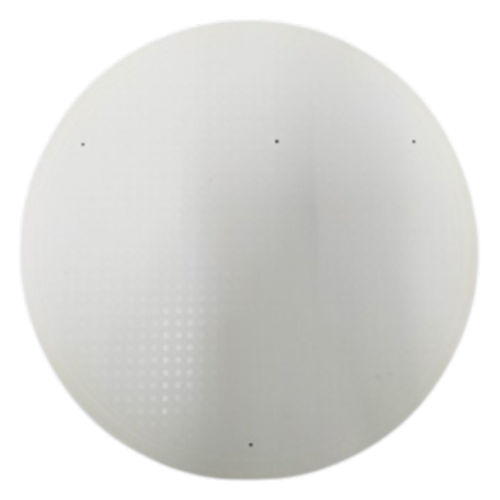

0040-48594
300mm AMAT HDP ESC

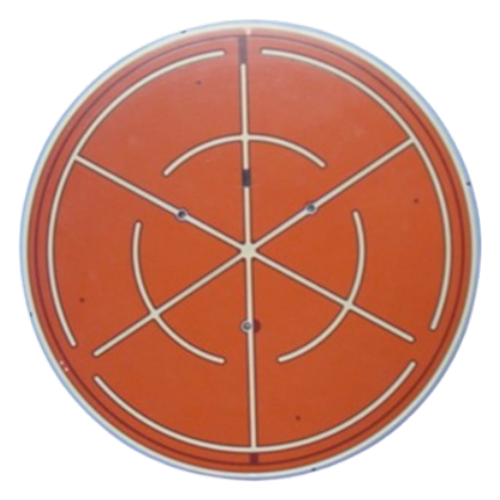

3FB0229G05
300mm SHIBAURA CDE ESC
2-A10839-*A/2-F03446-*A

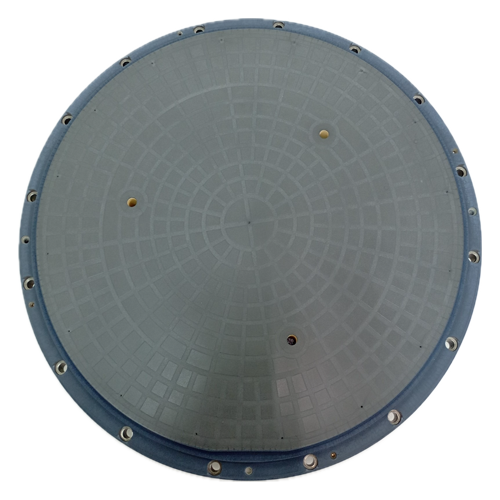

Hitachi AQTC ESC

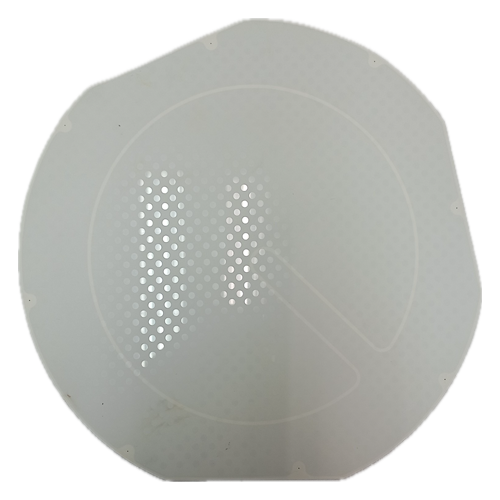

AIBT ESC
2L10-152778-12

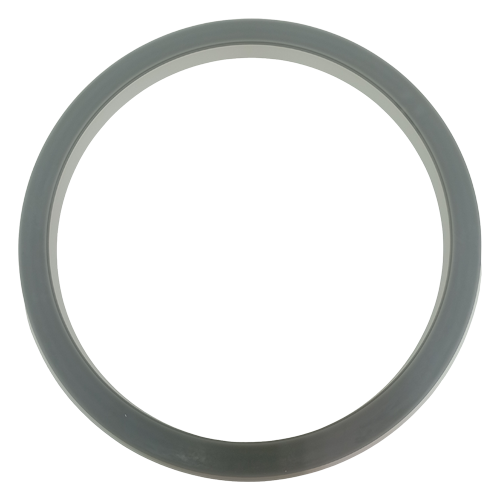

TEL Heater Ring
Transparent Electrostatic Chuck (E-Chuck / ESC)
For inspection equipment and bonding alignment applications.
Key Product Features
① Fully Transparent Materials
The base substrate, electrodes, and adsorption surface are all made from transparent materials, forming a fully transparent Electrostatic Chuck (ESC).
② Ideal for Inspection and Bonding Processes
Suitable for backlight inspection and comprehensive visual inspections. In bonding equipment, the alignment marks on the transparent ESC help improve process yield across various production stages.
③ Customizable Design
Like standard electrostatic chucks, the design can be customized according to application requirements, including shape, size, thickness, and the type of object being handled.
Need Technical Advice or Product Information?
Reach out to our specialists for detailed specifications, consultation, and engineering support.
